Neodymium Pot Magnets. Widely used in assorb ! The following items are the relative products of the NdFeB Pot Magnets, you can quickly find the NdFeB Pot Magnets through the list.
This neodymium ring magnet in a steel pot is countersunk. It can be fastened with a countersunk screw. The steel pot substantially increases the holding power of the magnet, but requires full contact with the opposing part, e.g. a steel plate. Magnets in steel pots don't have much effect into the distance, i.e. they are not suitable to attract a metal item from a distance, but they are very well suited to hold on to a piece of metal in full contact.
Specifications
1. Powerful permanent pot magnet
2. High quality & best price
3. High working temperature
4. Good corrosion resistance
The neodymium Pot Magnet with Countersunk widely used in Sale Displays, Exhibitions, Marketing Displays, Doors, Panels, False Ceilings
The Pot Magnet with Countersunk have a countersunk hole in the front (magnetic) face and can be easily fixed in place with a countersunk screw (M4, M5 and D8). They are ideal for using in fixing applications such as Point of Sale Displays, Exhibitions, Marketing Displays, Doors, Panels, False Ceilings and Light Fixtures and Fittings.
We can produce other Pot Magnets with Countersunk according to customer requirements. You are welcome to contact us for more information.

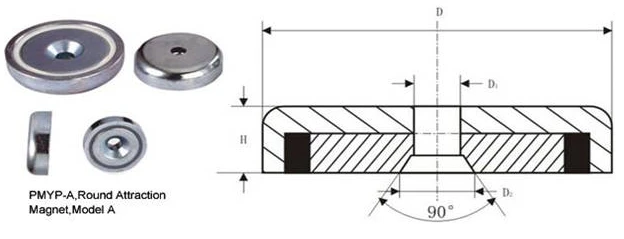

| Model No | D(mm) | D1 (mm) | D2 (mm) | H (mm) | Attractive (kg) | Weight(g) |
| BKPT-A16 | 16 | 3.5 | 6.5 | 5 | 5 | 7 |
| BKPT-A20 | 20 | 4.5 | 8.6 | 7 | 6 | 13 |
| BKPT-A25 | 25 | 5.5 | 10.4 | 8 | 14 | 23 |
| BKPT-A32 | 32 | 5.5 | 10.4 | 8 | 25 | 39 |
| BKPT-A36 | 36 | 6.5 | 12 | 8 | 29 | 52 |
| BKPT-A42 | 42 | 6.5 | 12 | 9 | 37 | 76 |
| BKPT-A48 | 48 | 8.5 | 16 | 11.5 | 68 | 120 |
| BKPT-A60 | 60 | 8.5 | 16 | 15 | 112 | 252 |
| BKPT-A75 | 75 | 10.5 | 19 | 18 | 162 | 488 |

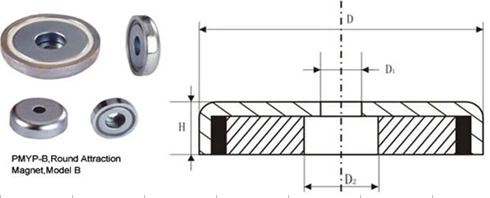

| Model No. | D(mm) | D1(mm) | D2(mm) | H(mm) | Attractive (kg) | Weight(g) |
| BKPT-B16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| BKPT-B20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| BKPT-B25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| BKPT-B32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| BKPT-B36 | 36 | 6.5 | 11 | 9 | 29 | 50 |
| BKPT-B42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| BKPT-B48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| BKPT-B60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| BKPT-B75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
| Model No. | D(mm) | M (mm) | H (mm) | h (mm) | Attractive (kg) |
| BKPT-C16 | 16 | 4 | 13 | 5 | 5.5 |
| BKPT-C20 | 20 | 4 | 15 | 7 | 9 |
| BKPT-C25 | 25 | 5 | 17 | 8 | 22 |
| BKPT-C32 | 32 | 6 | 18 | 8 | 34 |
| BKPT-C36 | 36 | 8 | 18 | 8 | 41 |
| BKPT-C42 | 42 | 8 | 20 | 9 | 68 |
| BKPT-C48 | 48 | 8 | 24 | 11.5 | 81 |
| BKPT-C60 | 60 | 10 | 30 | 15 | 113 |
| BKPT-C75 | 75 | 10 | 34 | 18 | 164 |
| Model No. | D(mm) | D1φ | M | H(mm) | h | Attractive (kg) | Weight(g) |
| BKPT-D16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| BKPT-D20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| BKPT-D25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| BKPT-D32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| BKPT-D36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| BKPT-D42 | 42 | 12 | 6 | 20 | 9 | 68 | 87 |
| BKPT-D48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| BKPT-D60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| BKPT-D75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
| Model No. | D(mm) | M | H(mm) | h | Attractive (kg) | Weight(g) |
| BKPT-E16 | 16 | 4 | 14 | 5 | 5.5 | 11 |
| BKPT-E20 | 20 | 4 | 14 | 7 | 9 | 21 |
| BKPT-E25 | 25 | 5 | 15 | 8 | 22 | 37 |
| BKPT-E32 | 32 | 6 | 16 | 8 | 34 | 56 |
| BKPT-E36 | 36 | 6 | 16 | 8 | 41 | 68 |
| BKPT-E42 | 42 | 6 | 16 | 9 | 68 | 97 |
| BKPT-E48 | 48 | 8 | 23 | 11.5 | 81 | 154 |
| BKPT-E60 | 60 | 8 | 23 | 15 | 113 | 282 |
| BKPT-E75 | 75 | 10 | 25 | 18 | 164 | 560 |
 (1) Small Pot magnet with hook 12 x 13mm |  (2) Medium Pot magnet with thread 25 x 17,5mm |
 (3) Big Pot magnet with thread 75 x 34mm |  (4) Pot magnet with hole 36 x 8mm |
